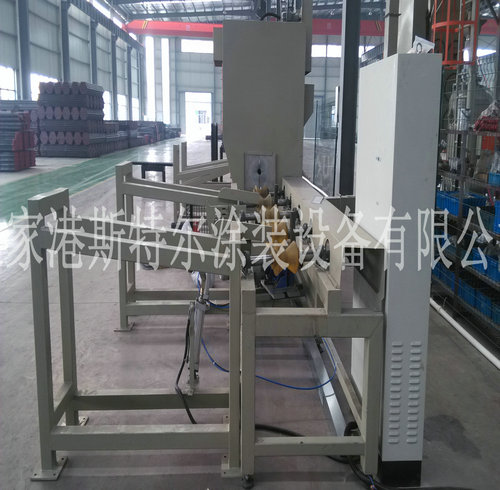

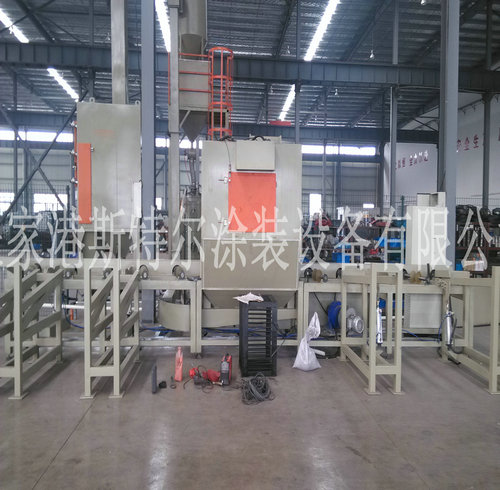

管道外壁自動噴砂機
◆適用于標準 Applicable scope
管類(lei)鑄件,如(ru):無縫(feng)鋼管、園鋼、螺旋軸、螺旋軸、大圓錐(zhui)形、圓桶(tong)類(lei)、圓錐(zhui)形型鏜(tang)孔(kong);使(shi)用雙(shuang)槍(qiang)(可按規范多槍(qiang))及(ji)颶風式濾塵器(qi)和(he)微電子(zi)感受到(dao)特(te)點(dian),增加了研(yan)發使(shi)用率(lv)及(ji)好(hao)大的(de)縮短了搶修率(lv)。 (此型號需網上預訂)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆首要技術水平主要參數 Main technical parameters
|
儀器材質 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
業務艙大小 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整體尺寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
進行壓縮自然空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
主機電源 Power |
220v 50Hz |
220v 50Hz |
|
定頻主軸電機調壓器 Governor |
250W×2 |
250W×2 |
|
轉移器交流電動機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
隔離器功率 Air separator |
35m3/min |
35m3/min |
|
機械毛重 Machine weight |
900kg |
900kg |
