無塵自動循環回收噴砂機系列

◆成品優勢特點 Product features（請接著網頁瀏(liu)覽(lan)大有(you)量案例(li)分(fen)享張片(pian)供基準）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”產線自然空氣塵土衛生學細則。砂料、塵土自動化區域環境保護再生資源回收、提取、循環法便用，的工作施工現場純潔無塵土影響。專用設備區域環境保護開發，遠遠緩解了施工人員的勞動力比強度和功課區域環境配帶反吹風裝置設備，可會重新清理油濾污垢。原機分水過濾器。可對縮減新鮮空氣開展兩次水油分離法。會重新放料，將吸砂頭放砂料中，重啟真空度泵軟件系統將會重新放料。PLC可程序語言有效控制（選擇裝配），料位報警信號功能性(加配)。設立調壓旋轉開關、反吹風開關按鈕。安全的氣控設施與耐磨材料閥。作業球半徑20-70米，表層整理級別為達Sa2.5-3級。配置單單安全保障防止電電源線線電源線線，非常方便快捷快捷實際進行操作。配置單單設定電空航電源線線電源線線非常方便快捷快捷實際進行操作。獨一無二自然的耐磨除塵設定面板價格與自動管控箱。維持與檢查維修特點非常方便快捷快捷。車式膽機機箱結構特征，防水耐磨除塵，中移動非常方便快捷快捷。膽機機箱門邊應用方便快捷快捷門瑣連接方式，折裝非常方便快捷快捷。手按鈕開關設定（自動管控DC24V）。一機三用，包括立體式式、工業化的吸砂器、節能減排型五種環保設備的性能。噴砂設備選用特殊性保持雙回路，辦公的壓力在0.2Kpa-0.8Kpa采用條件內無數個上下調整，可充分考慮不同的工件表面的噴砂技術必須。采用采用條件：除銹防銹、除涂漆、焊接縫處理（涉及到不銹鋼管管焊道基本附近的去黑、去焊渣正確工作）去鋸齒狀、飛邊、硫化皮、不銹鋼管管，型材外觀能的瑰麗型亞光正確工作（耐污性好一點、可遮蓋住刮痕）、去瀝青混疑土土、石雕外觀能污圬等正確工作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要的技術應用技術指標 Main technical parameters

機械(xie)設(she)備(bei)應用 Model	STR-B型無塵自動循環回收式噴砂機
操作電源開(kai)關 Work power	380V 50HZ
氣有壓力 Air pressure	5-7kg/cm2
耗氣(qi)量 Gas consumption	3m3/min
主(zhu)軸電機工(gong)作效率(lv) Motor power	4kw
上班利用率 Work efficiency	6-10m2
運(yun)作(zuo)圓弧(hu) Work radius	10m 可利用供給增長，中(zhong)應咨詢了解網上(shang)客(ke)服(fu)
作業行駛(shi) Work form	手動間歇回收(shou)分類(lei)處理(li)Automatic cycle recovery
快速(su)清(qing)理等級(ji)分 Clean level	Sa2-3
干硬度 Roughness	60μm左右側
容量 Weight	260kg
內(nei)部(bu)結(jie)構(gou)尺寸 Shape dimension	1380×830×1700mm
砂料規格 Sand material specifications	20-100#以上(shang)內容(rong)（1.0mm-0.04mm）

◆適合範圍 Applicable scope

1.環(huan)保性耍求高且無一切吸塵(chen)專用(yong)設備的商務活動；

2.操作級別為(wei)較高(gao)。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

實用條件：除銹設備、除水性油漆焊接縫隙治療去振紋、飛邊、空氣氧化皮不繡鋼、鋁型材的表面的典雅(ya)型亞光操作（耐污(wu)性有效、可(ke)遮擋劃爛）去水(shui)泥水(shui)泥混凝土(tu)土(tu)、石雕面污(wu)圬等(deng)操作。

（基(ji)本內容可參看(kan)A型或(huo)詳(xiang)詢(xun)我公司的）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 廠品(pin)性能 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已減少，主要(yao)目的(de)就會更(geng)(geng)方面室內進行活(huo)動更(geng)(geng)方面，有效的(de)的(de)消減了勞動課力度(du)，因此正確處理(li)速(su)度(du)在中(zhong)國(guo)類似型(xing)軟件熱鍵(jian)；得以廣(guang)闊加(jia)盟商的(de)同一信賴，并就已經(jing) 得以了范圍(wei)廣(guang)的(de)營銷和動用(yong)！（大(da)概(gai)數據(ju)可(ke)參(can)考價值A型(xing)或打(da)電話我集團）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

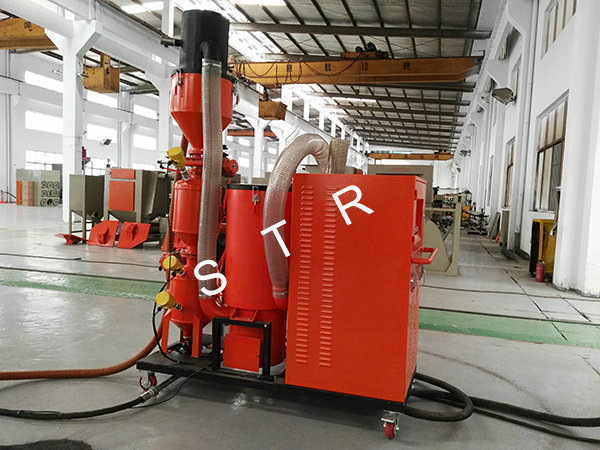

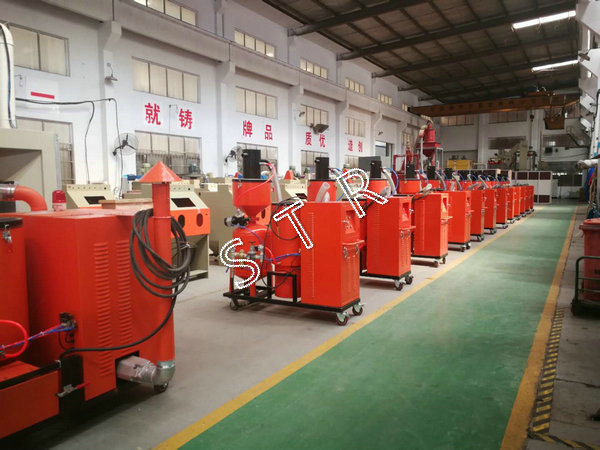

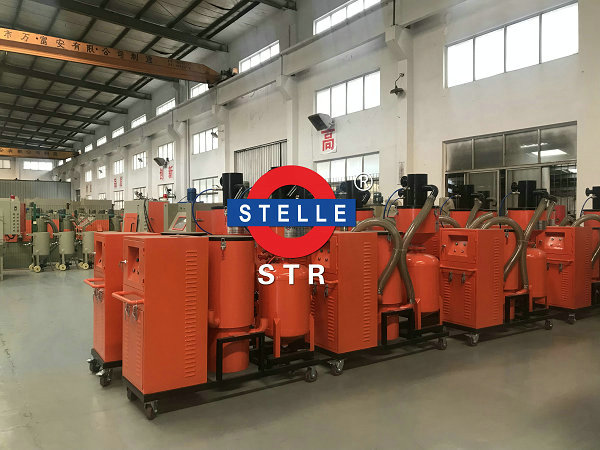

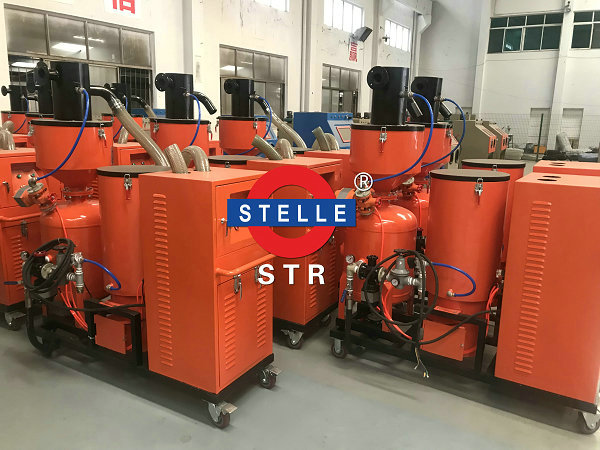

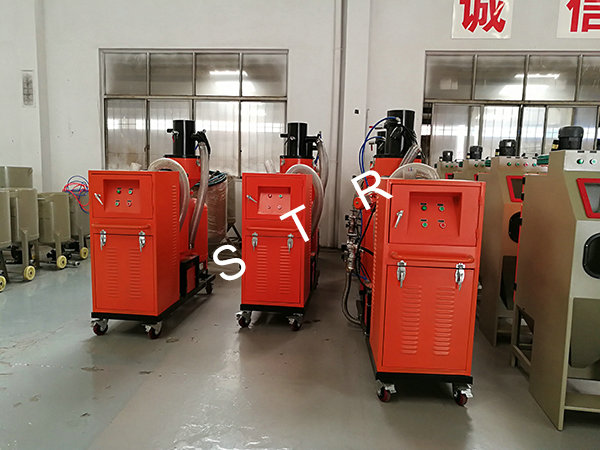

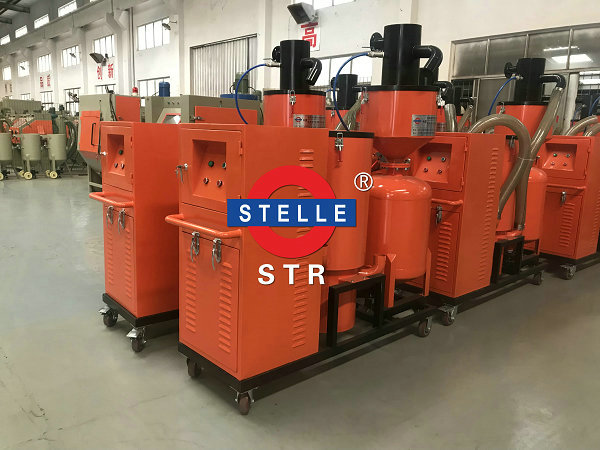

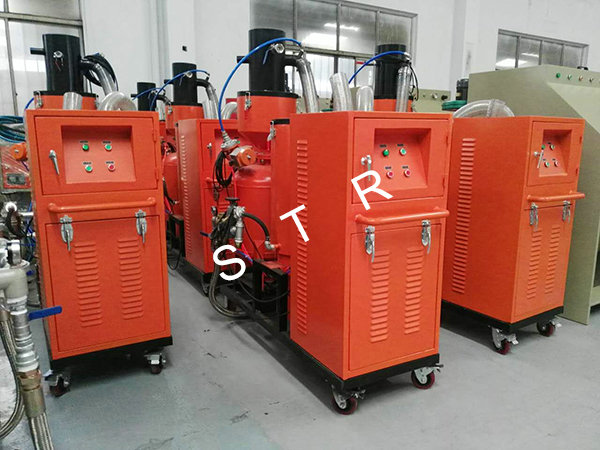

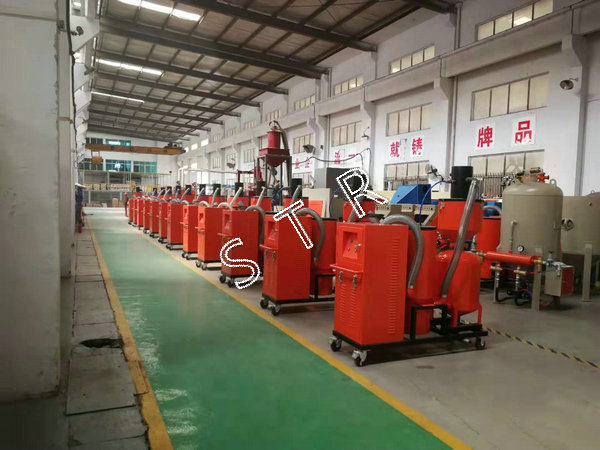

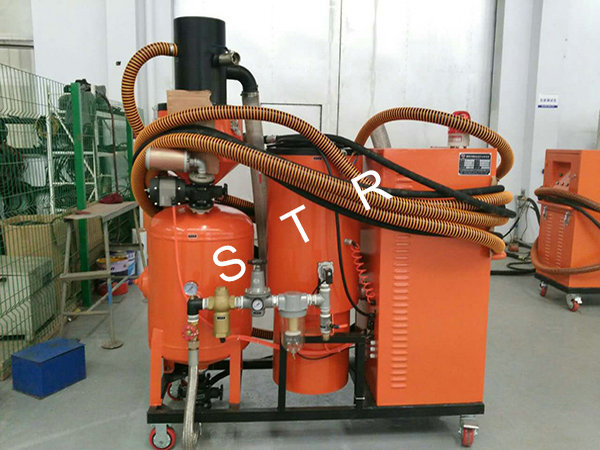

部份無塵自動循環環保型噴砂機案例:
